One Shaft Wire Extruder Machine With Automatic Tension Adjusting System

Name: One Shaft Wire Extruder Machine With Automatic Tension Adjusting System
Brand: Fuchuan
Price: 1 USD

Brand Name : Fuchuan

Model Number : FC-650B

Certification : ISO9001:2008

Place of Origin : China JiangSu

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 sets one year

Delivery Time : 45days

Packaging Details : normal packing

Name : Wire Extruder Machine

Shaft : One Shaft

Equipped : Automatic Tension Adjusting System

Outlet copper wire diameter : Φ0.8～1.78mm

max speed : 300

Advantage : Low Noise

Contact Now

One Shaft Wire Extruder Machine With Automatic Tension Adjusting System

Wire Extruder Machine Quick detail :

Wire Extruder Machine Specification:

The technology of this machine is brought from Japan and put in production in JiangSu

Series for big shaft passive type pay off machine

One whole set pay off machine contains:

A. FC-1000magnetic passive type pay off machine

B. Centre bundling machine

C. 500kg caterpillar hauling machine

Wire Extruder Machine Specification:

Equipment usage	BV building wire	LAN cable-2
Inlet copper wire diameter	Φ2.5～3.0mm	Φ2.5-3.0mm
Outlet copper wire diameter	Φ0.8～1.78mm	Φ0.4-0.9mm
Extrusion finished wire diameter	Φ2.0～5.0mm	Φ0.7-1.5mm
max speed	300	1200
max die number	17	17
Mechanical reduction ratio	20%	20%
Capstan reduction ratio	15%	15%
drawing power	45KW	45KW
Annealing type	DC 3phase	DC 3phase
Wire accumulator rack	Vertical accumulator	Vertical accumulator
Cooling water tank	Double layer	Double layer
Capstan	510Double wheels	410double wheels
Wire accumulator	Horizontal	Horizontal
Take up machine	Shaft or coiling machine	Shaft

Other information:

active pay off or passive pay off

Terms of payment:

FOB Shanghai / Ningbo

Payment terms:

30% down payment,70% before shipment

Delivery time:

45-60 days after receive the downpayment

Product Tags:

wire extrusion machine

wire stranding machine

One Shaft Wire Extruder Machine

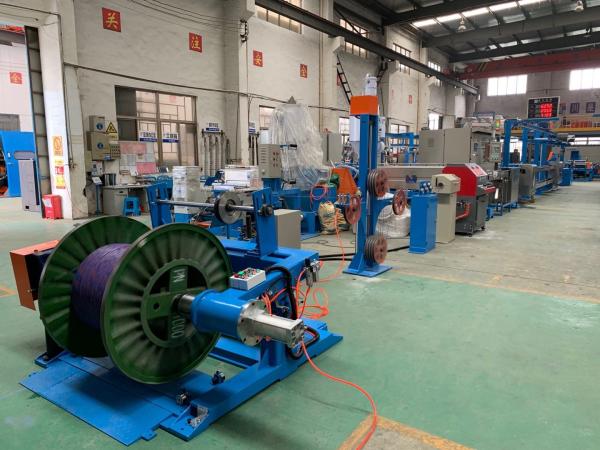

One Shaft Wire Extruder Machine With Automatic Tension Adjusting System Images
